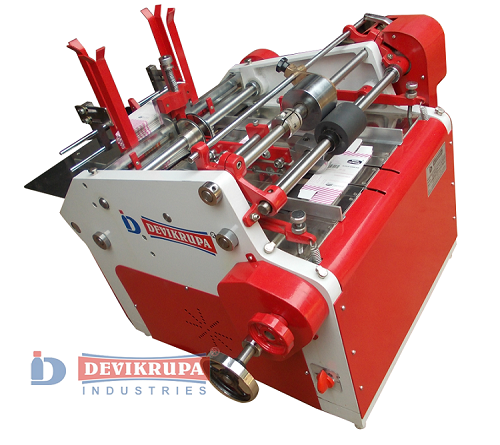

HIGH SPEED AUTOMATIC CARTON CODE PRINTING MACHINE

Machine is used for printing Batch No, Mfg date: Exp. Date: Rate and other Matter on preprinted cartons with different suitable speed. Machine is printing batch number with help of rubber stereo and ink. Pusher press carton one by one to feed roll and pinch roll then chain lugs pass carton to printing block, where stereo paste on printing block is print batch number with help of ink form ink roller. Technical Specification Carton Size Length: 100mm to 320mm Width: 40mm to 185mm Printing Speed 125 / 180 / 250 Carton per minute Power 3 Phase / 0.25 HP / 414 V / 1440 RPM Printing Area Max. 45mm X 75mm Use of Letter Rubber Stereo Dimensions (L) 863mm (34”) (W) 762mm (30”) 610mm (24”) Net Weight 115 Kgs. Approx Gross Weight 195 Kgs. Approx
