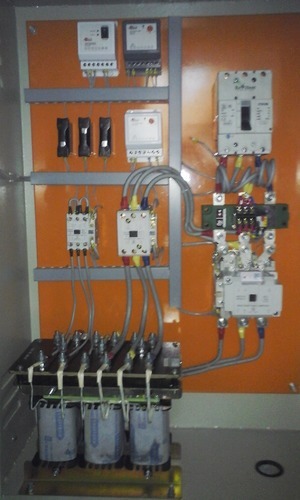

ATS Starter Control Panel

Knowing us a renowned organization, we are engaged in offering an instrumental in providing ATS Starter Control Panel that are used to eliminate the high inrush current and start-up torque on ever start. These panels use soft starters for different ratings of motors. Our range of soft starter panel is considered appropriate for achieving optimum level of power consumption and linear consumption and de-acceleration.     Specifications:   Metal Box: CRC Sheet with Powder coated. (2) Digital Ammeter(R-Y-B). (3) Digital Voltmeter (0 - 500 Volt) RY-YB-BR. (4)Over Load Protection (As per Motor Rating) Variable with 0 to 60 Sec Time. (5) Under Load Protection (As per Motor Rating) Variable with 0 to 60 Sec Time. (6) Over Voltage Protection (300 - 500 Volt) Variable with 0 to 60 Sec Time. (7) Under Voltage Protection (300 - 500 Volt) Variable with 0 to 60 Sec Time. (8) Single Phase Preventer with Current and Voltage Sensing. (9) Switch - Auto-Manual. (10) Power and Control wiring: Cupper. (11) Out Put Terminals (As per Motor Rating). (12) Indicating Lamp: R-Y-B (22.5 sq.mm LED Type). (13) Push Button: On/Off (22.5 sq.mm LED Type). (14) Auto Transformer (Air Cooled various taping 60%, 70%, 80%). (15) Timer (16) Water Level Controller.
